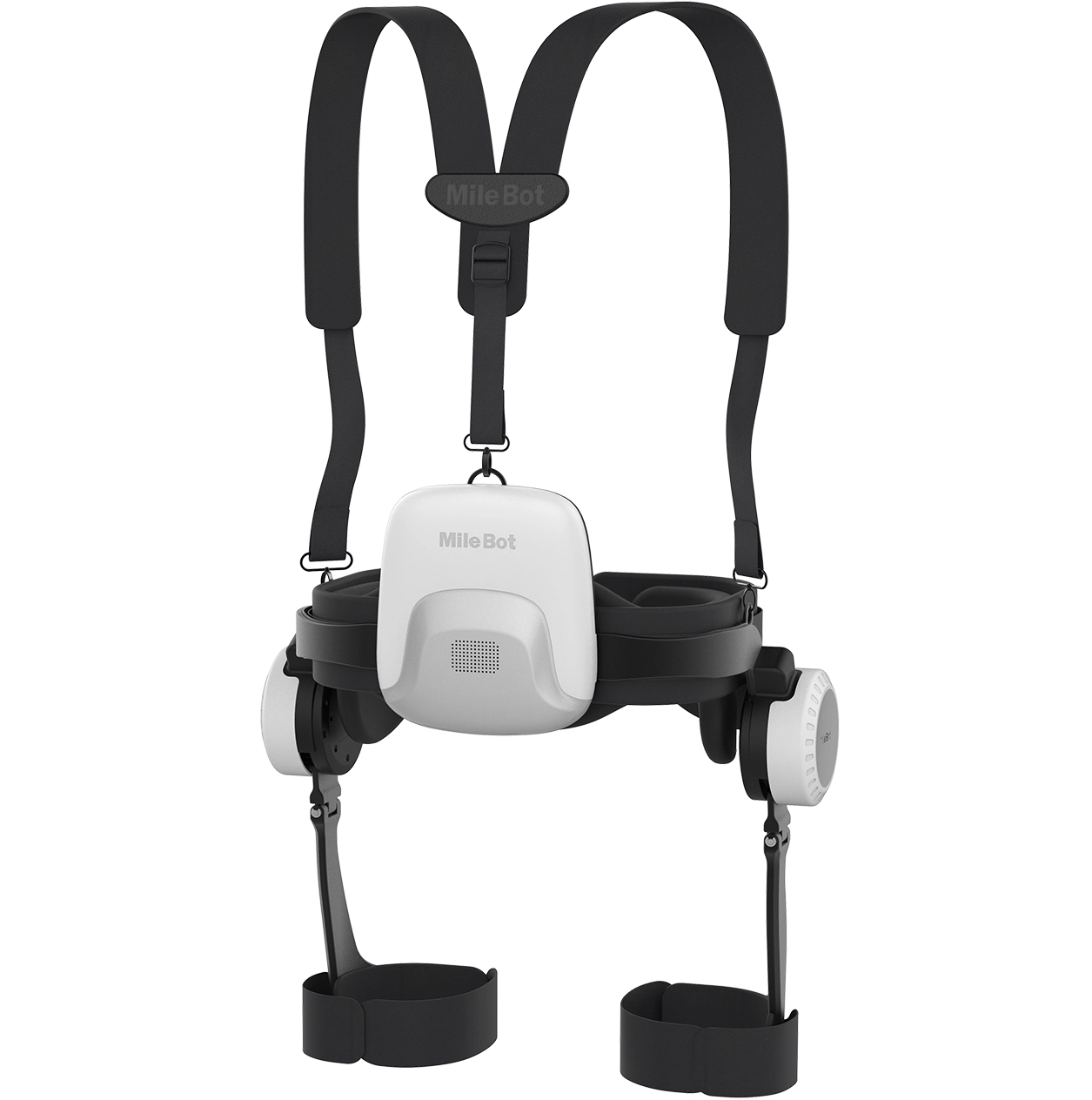

MAX F series of products are designed to support users in walking easily during outdoor activities like hiking and mountain climbing. As part of the evolving types of rehabilitation robots, these devices feature a lightweight design and are classified as non-medical products, making them ideal for everyday mobility support.
Model | F1 | F2 | F3 |
Function | walking assistance mode left assistance mode right assistance mode resistance mode | walking assistance mode left assistance mode right assistance mode | walking assistance mode resistance mode |
Equipment Size | Length 450mm×width 270mm×height 500mm, tolerance ±10% | ||
Length of Leg Boost Rod | 221.4mm (Adult Version) , 126mm(Children Version), tolerance ±0.02% | ||
Net Weight | 3.2kg±5% | ||
Boost Level | Five Level (adjustable) | ||
Boost | 12Nm (Max) | ||
Battery | Lithium battery, DC 21.6 V | ||
Battery Life | Approx. 120min | ||
Charging Time | 2h | ||
Input Power | 100-240V ,50/60Hz | ||
Use environment | Indoor or outdoor (except rainy days) | ||
1. Light-weight and compact design: the net weight of the robotic walking assist device is appromixately 3.2KG. It comes with a compact design in order to make sure users to wear it easily.
2. Five levels of boost: the robot can provide total five levels of boost for users and the maxium boost is 12 N·m.
3. Multiple mode options: the robot has serval working modes including walking assistance mode, left assistance mode, right assistance mode, resistance mode. It can meet users' demand in different situation.
4. Adjustable structure: the bandages for back and leg are all adjustable, which keep patients comfortable and secure when they are using the machine.
